Lower Body Negative Pressure (LBNP) Chambers

Technavance Logo_WHITE_edited.png

Lower Body Negative Pressure chambers are widely used to investigate hemodynamic responses and address military/aerospace-related research questions. By applying negative pressure to the lower body, blood is translocated from the central circulation to the periphery; reducing central blood volume in a manner analogous to acute hemorrhage, orthostatic stress, and acceleration.

Technavance LBNP chambers build on this well-established methodology by offering a flexible, purpose-built platform tailored to modern research needs. In addition to an economical entry-level model, we offer custom configurations including integrated beds, motorized tilt, a dedicated MRI-compatible design, and fully automated pressure control. Large capacity chambers capable of accommodating integrated ergometers are also available.​

Technavance's LBNP Chamber with Head-Up Tilt and Autoamted Pressure Control.

User-friendly control software, included with automated systems, delivers high accuracy and enables investigators to fully customize vacuum test protocols for precise, repeatable experimentation.

Technavance offers eight LBNP chamber models built on a common platform, with options that vary by chamber size, pressure control, and tilt capability to support a wide range of research applications.

LBNP Chamber Models & Features.png

Download the chart here:

Technavance also offers solutions for the following:

  • MRI-Compatibility

  • Extreme Environment Compatibility

  • Positive Pressure

​​​

Continue below to explore this innovative solutions ↓

LBNP Chamber Models 1xxx

LBNP Chamber Models 2xxx

Shared Basic Features

*These features are standard across all LBNP chamber models.

​

  • Lockable castors for easy transport and storage.

​

  • Transparent, removeable side panels for visibility and access.

​

  • Adjustable front entry to accommodate a wide range of participant sizes.

​

  • Motorized, adjustable seat for participant stability and proper positioning within the chamber.​​

​

  • Top gland plate for clean cable and tubing egress.

​

  • Achievable pressure range 0 to -100 mmHg.

​

  • Rigid aluminum frame.

​

  • Analog output for pressure data.

Available Upgrades

*These are specific to the LBNP models*

​​​​

LBNP 1xxx

  • Support cushion for use with an existing subject bed.

​

LBNP 2xxx

  • Ergometer attachment compatibility.

  • Integrated, foldable armrests.

Advanced Options

*See the “LBNP Chamber Models & Features” document for details.

​

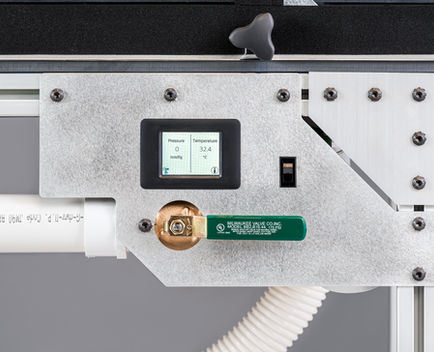

Manual Pressure Control

  • Chamber pressure adjusted manually via lever.

  • Integrated digital touchscreen display.

​

Automated Pressure Control

  • User-friendly software.

  • Fully automated protocols (ramps, oscillations, steps, and custom sequences).

  • Highly accurate and repeatable.

  • Hands-free.

​​

Integrated Subject Bed

  • Improved participant comfort.

​​

Enlarged Chamber

  • Accommodates an ergometer (not included).

​​

Automated Motorized Tilt​​

  • Head-Up

    • 0 to 65°

  • Head-Down

    • 0 to 60°

  • Head-Up and Head-Down

    • 0 to 65°

    • 0 to −15°​

​​

Adverse Environmental Conditions

  • Can be engineered for use in extreme environmental conditions (i.e., environmental chambers).

MRI-Compatible LBNP Chamber

Pressure Control Options

​​

Manual Pressure

  • Adjusted manually via lever.

  • Digital touchscreen display.

​

Automated Pressure

  • User-friendly software.

  • Fully automated protocols (ramps, oscillations, steps, and custom sequences).

  • Highly accurate and repeatable.

  • Hands-free.

​

Basic Features​​

​

  • Chamber dimensions: 49" L × 24" W × 19" H; ~125 lbs.

​

  • Constructed entirely from plastic components.

​​

  • Designed to fit within MRI bore.

​

  • Constructed and sealed around the subject while positioned on the MRI bed.

​​

  • Various sealing panels to accommodate subject size variability.

​​

  • Manually adjustable seat.

​​

  • Detached pump box enables operation from the MRI control room.

​​

  • Lockable wheels on the pump box.​

​​

  • Achievable pressure range from 0 to −50 mmHg.

​​​​

  • Analog output for pressure data.

Positive & Negative Pressure Chamber

LBNP 2072_Side View.png

Features​

  • Lockable wheels for easy transport.

​

  • Transparent, removeable side panels.

​

  • Adjustable front entry.

​

  • Adjustable seat for use during negative pressure.

​

  • Adjustable harness for use during positive pressure.

​

  • Top gland plate for clean cable and tubing egress.

​

  • Pressure controlled manually via lever.

​

  • Achievable positive pressure from 0 to +50 mmHg.

​

  • Acheivable negative pressure from 0 to -100 mmHg.

​

  • Rigid aluminum frame.

​

  • Analog output for pressure data.

​

  • Integrated Subject Bed

    • Improved participant comfort.

​​

  • Enlarged Chamber

    • Accommodates an ergometer (not included).

​

CONTACT OUR TEAM TO DISCUSS YOUR APPLICATION.
